Rx61 Overview - v601/602
|
|
|
|
|
|
|
PRODUCT: Rx61
VERSION: 601/602
PCB ID: 61a (printed)
PCB MARK: 01/02 (hand written)
THIS VERSION IS: Rx61a - v602
NEWER VERSION: Rx61b - v603
NEWER VERSION: Rx61b - v610
NEWER VERSION: Rx61c - v611
DESCRIPTION:
Receiver for surface vehices.
All variants are physically identical and have the same software but different defaults.
All outputs can be changed individually by operator.
| Variant |
Rx61-1 | Rx61-2 | Rx61-22 | Rx61-3 | Rx61-4 | Rx61-5 | Rx61-8 | Details |
|
Purpose: |
Train with joystick Tx |
Train with Tx21 |
Train with Tx22 |
Car with joystick Tx |
Conven- tional |
Car with Dx3 |
8 servos | |
|
'H' output: (H-Bridge) |
1 |
1 |
1 |
1 |
1 |
1 |
- |
Integrated forward/reverse ESC for brushed motors 512 step PWM control |
|
Motor control |
'Low off' |
'Center off' |
'Center off' |
'Center off' |
'Center off' |
'Center off' |
- |
|
|
Direction channel |
Yes |
- |
- |
- |
- |
- |
- |
|
|
'P' outputs: (Pads) |
7 |
7 |
7 |
7 |
7 |
7 |
8 |
Signal pads for Servos and low current on/off switching (<20mA) Special programs for car lights and other switching 1024 step Servos Serial data feed |
|
Servos |
2 | 1 | 1 | 1 | 7 | 3 | 8 | |
|
On/off switching |
5 | 6 | 6 | 6 | - | 4 | - | Led's usually |
| 'Selecta': | - | - |
Enabled (Ch2) |
- | - | - | - |
Selecta can activate and deactivate models without touching them
|
| BEC: | 4v 150mA 'Battery Eliminator Circuit' (regulator) for 1 small servo (<2.5g size) |
|||||||
| Size: | 12.2 x 21.6 x 4.0mm | |||||||
| Weight: | 1.0g | |||||||
| Pad spacing: | 2.54mm (0.1") | |||||||
| Voltage range: | 3-16v | |||||||
| Motor current: |
1.5A max stalled at 100% throttle |
|||||||
| Rx current: | 15mA | |||||||
| Rx outputs: | 8 (see above) | |||||||
| Tx channels*: | 14 max (9 tested) | |||||||
| Modulation: | 2.4GHz compatible with 22ms DSM2 and DSMX Air and 16.5ms DSM2 Surface |
|||||||
| Range: | Indoor/Outdoor |
* = Channels that can be used to control receiver outputs (all outputs can be associated with any channel)

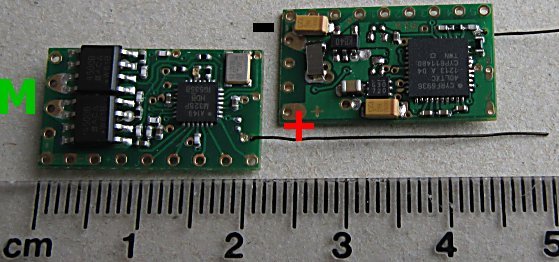

WIRES and CONNECTORS:
A wired 'W' version is possible with 2 wires for power and 2 wires for the motor.

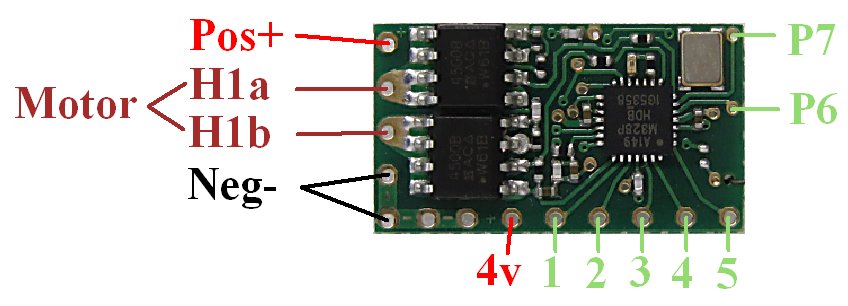

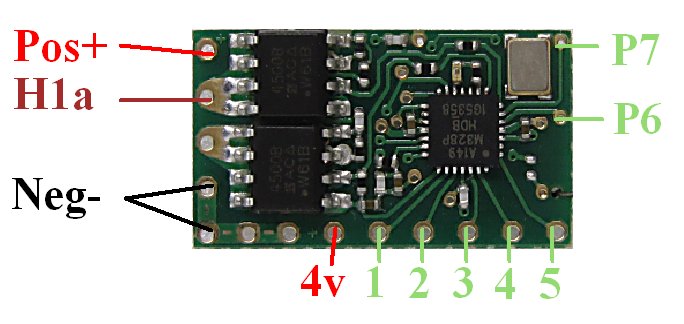

A vertical connector 'V' version is possible which also has a 9-way socket. 5 are for 'P' outputs, 1 is 4v for a small servo, and 3 are negative. The socket is a standard SIL 'turned pin' IC socket. It accepts the same as plugs or 0.5-0.6mm single strand bell wire.
INSTRUCTIONS:
| Rx61-1 | Rx61-2 | Rx61-22 | Rx61-3 | Rx61-4 | Rx61-5 | Rx61-8 | Programming | Change | Version |
v602 v601 |
v602 v601 |
v602 - |
v602 v601 |
v602 v601 |
v602 v601 |
v602 v601 |
v602 v601 |
Selecta simplified, DSMX, 14ch max, 60s bind timeout First version, DSM2 Surface, Adjustable softstart |
