Rx45-v5 Details
|
. |
. |
. |
Rx45-v5 |
. |
N gauge |
Rx45-22 |
DESCRIPTION:

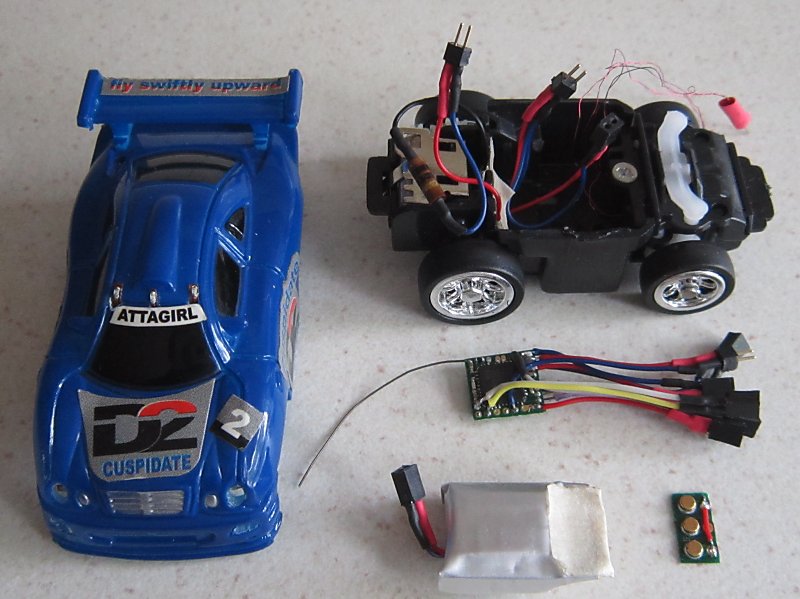

Receiver for miniature planes, trains and automobiles driving motors, actuators, servos, leds and other items.
Standard setup + facility to change output types over radio link.
| Item |
Qty | Details |
|
'H' outputs: (H-Bridges) |
1 x 500mA |
'H' outputs are reversable ESC's for brushed motors (cars, trains) and actuator steering 2 can be used for 2-motor steering (tanks) 128 step PWM control |
|
'F' outputs: (Fets) |
2 x 2A |
'F' outputs are non-reversable ESC's for brushed motors (planes) and variable voltage/on/off switching 2 can be used for steering with 2 motors (planes), 2 muscle wires (nitinol, flexinol) and 2-coil actuators 2 can be converted to a reversable H output with ADD1/2 1 can be used for a motor, led, horn, buzzer, etc. 64 step PWM control |
|
'P' outputs: (Pads) |
6 |
'P' outputs are signal pads for Servos and low current on/off switching (<8mA) Special programs for car indicators, brake, reverse, flasher, headlights and other switching 256 step Servos |
| Size: | 9.0 x 9.6 x 2.1mm | |
| Weight: | 0.24g | |
| Pad spacing: | 0.8-1.2mm | |
| Voltage: | 3-6v | |
| Current: | 13mA | |
| Modulation: | 2.4GHz compatible with 22ms DSM2 Air and 16.5ms DSM2 Surface No 'Quick Reconnect' and only uses 1 frequency (same as DSM2 Surface) |
|
| Channels: | 7 max | |
| Range: | Indoor |
INSTRUCTIONS:
|
Version |
Marking |
Rx45-v5 (car) |
Rx45-5-v5 (car) DX3 |
Rx45-22 (train) |
Change |
| 511 | 11 | - | - |
v511 |
Full stick (low off) option available, min Motor power not available |
| 510 | 10 |
v510 |
v510 |
- | Add Selecta, min Motor power, Prog2, Prog3 / Remove full stick options |
| 503-x | - |
v503 |
- | - | Add variants 1-3 , Ch5 led toggle, no Bind after failsafe |
| 502-x | - |
v502 |
- | - | - |
PROGRAMMING:
Settings can be changed with a joystick transmitter or Prog3.
| Version | Marking | Options table |
| 511 | 11 |
v511 |
| 510 | 10 |
v510 |
| 503-x | - |
v503 |
| 502-x | - |
v502 |
PROG2/PROG3:
Prog3 is intended for most customers. Prog2 is intended for shops.
| Rx version | Prog2 | Prog3 |
| 510-x |
v110 |
v110 |
VIDEO EXAMPLES:
| Rx45-v5 demonstrating control over front lights, rear, brake, reverse, indicators, harzards, roof flashing light, forward/reverse motor and steering. | |
|
N gauge Minitrix 0-4-0 engine on 103mm Tomix track Forward/reverse with 'full stick' throttle settings and separate 'direction' channel. |
